MAXTOP silent stainless casing piston oil free air compressor are widely used in electric vehicles for efficient air compression without the need for lubricating oil. This is the development trend of the industry in the new area. It is not only environmentally friendly and energy-saving but also meets people's needs. The ultra-quiet casing is very friendly to human life. Another important use of this product JYC400 is to connect to an oxygen concentrator to provide clean, pollution-free, oil-free air.
Item No :
JYC400Order(MOQ) :
≥1 unitPayment :
T/T, L/C at sightProduct Origin :
ChinaColor :

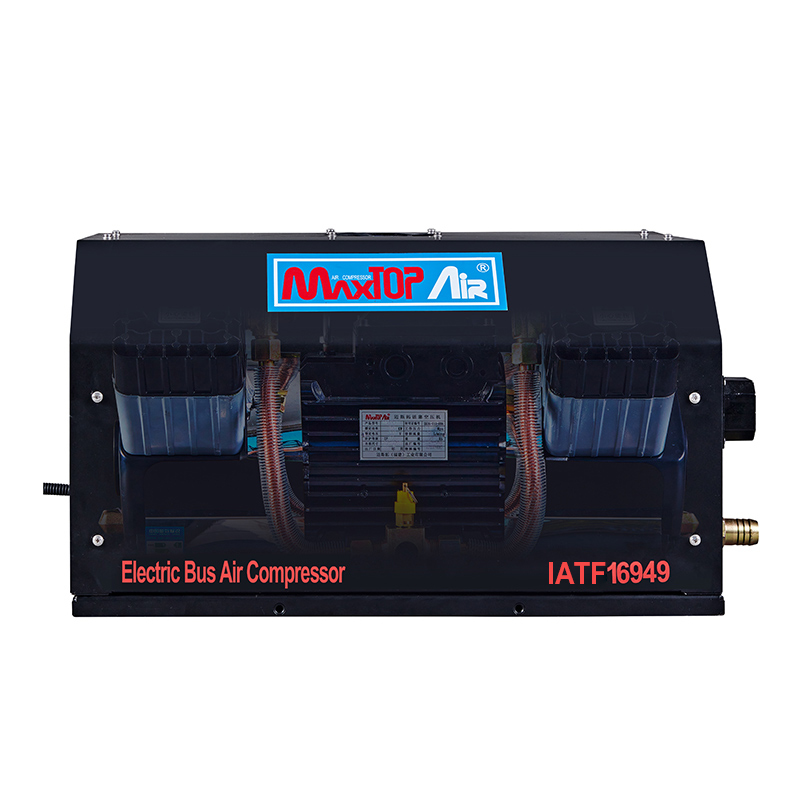

Stainless ColorSilent Piston Type Oil Free Air Compressor For Electric Bus

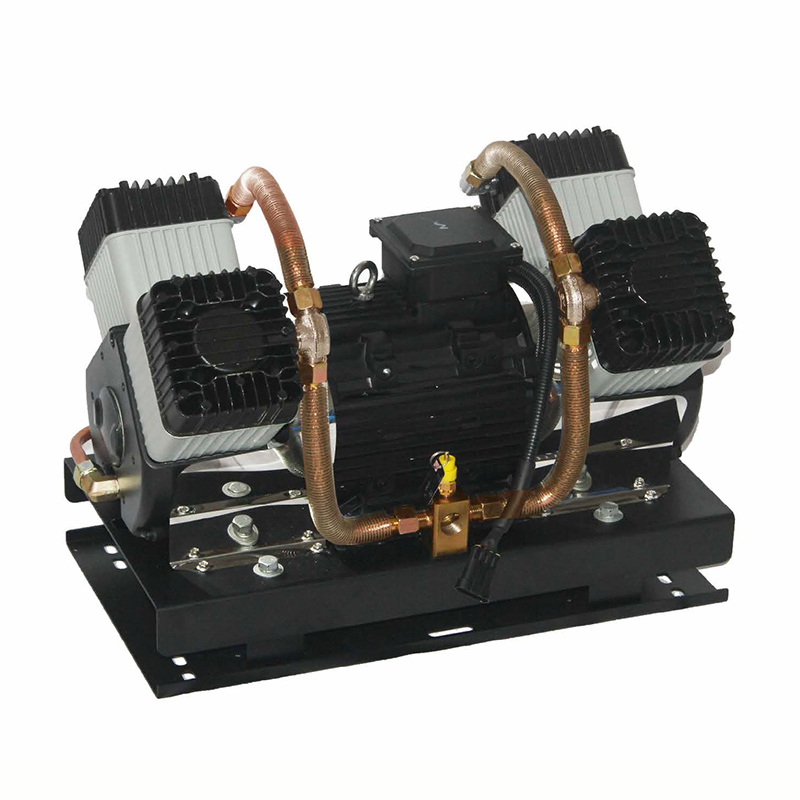

Maxtop silent oil-free vehicle piston air compressor (referred to as "brake air pump") is an oil-free air compressor with high efficiency and reliability. It delivers high-quality compressed air, has the characteristics of compact structure, low noise, excellent technicality and stability, and high efficiency and energy saving. It can be used for durable operation under high pressure and low noise operation under low pressure. Due to its small size and low exhaust temperature, it is suitable for built-in matching of new energy vehicles and buses. The bottom adopts a shock absorber that meets the 6G impact acceleration fatigue test and adopts a direct cooling method of forced air cooling, plus external natural air cooling, which increases the heat dissipation rate of the compressor itself by 30% compared with other brands of compressors.

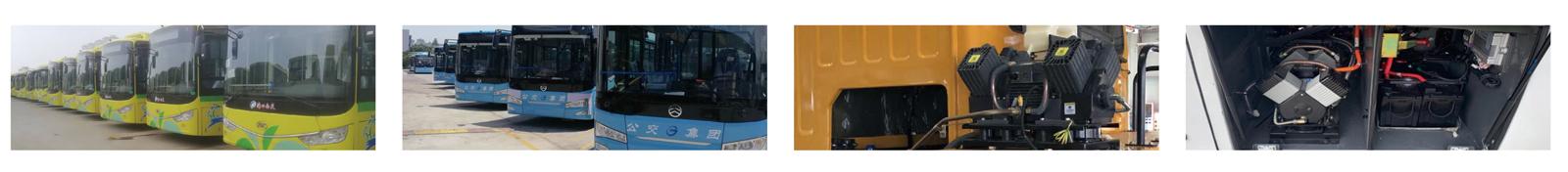

This electric vehicle oil-free piston air compressor is widely used in buses, light trucks, logistics and other vehicles with a length of 6 ~16 meters.

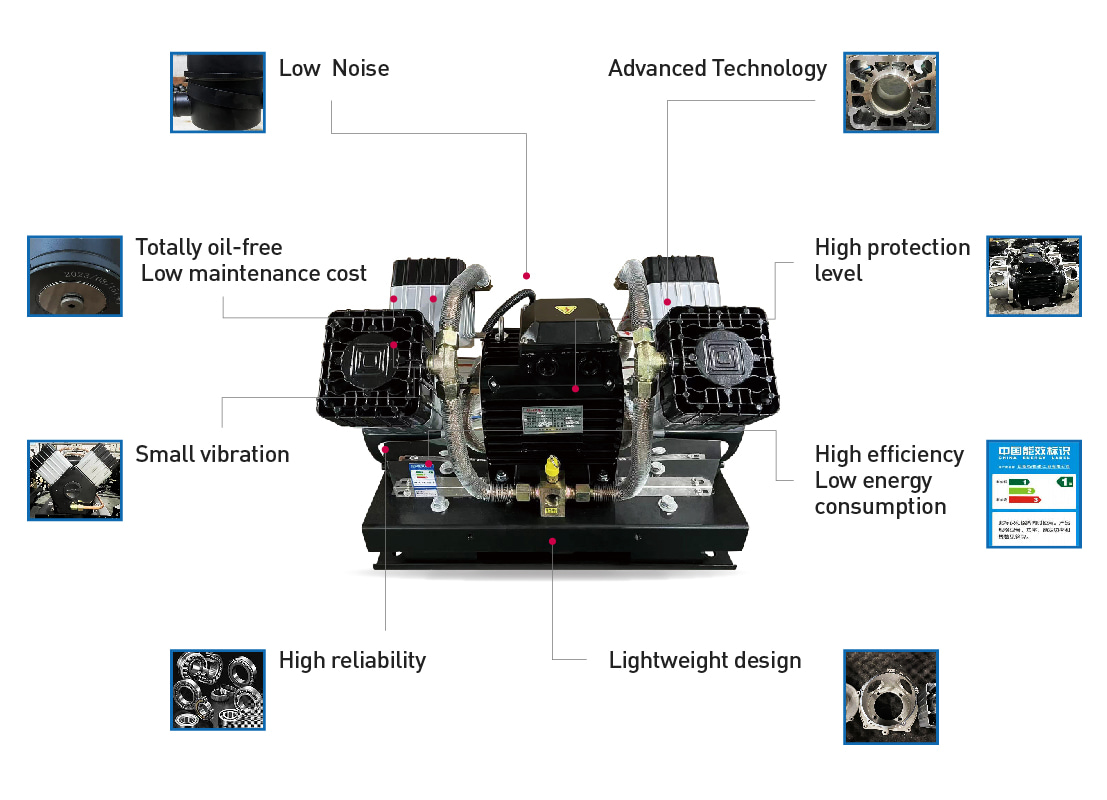

MAXTOP Oil-Free Piston Air Compressor is a highly efficient compressor designed for electric buses. It have several key advantages:
1. Supper Silent : The compressor is designed with silent frame to produce very low noise, providing a comfortable and quiet riding environment. This feature improves passenger comfort and reduces noise pollution in urban areas.
2.Much Improved Efficiency: This compressor uses advanced technology to provide optimal efficiency, thereby reducing energy consumption and operating costs. It improves the overall energy efficiency of electric buses, making them more sustainable and environmentally friendly.
3.Compact and Lightweight: Designed with portability in mind, this compressor is compact and lightweight, suitable for installation in the limited space of electric buses. The small size makes it an ideal choice.
4.Oil-Free Operation: The MAXTOP compressor does not require lubricated oil, eliminating the risk of oil contaminating the air system. It ensures high-quality clean compressed air for a wide range of applications.
5.Durable and Reliable: The compressor is built with top professional & high quality materials and components to demonstrate excellent durability and reliability under demanding conditions. This ensures a long service life, minimizes maintenance needs, and reduces downtime and associated costs.
EV bus oil-free piston air compressors offer these important features, making them ideal for electric bus applications requiring clean and efficient compressed air.Which is the best choices for electric buses.
| Model | MP250 | MP290 | JYC400 |
| Pressure(Mpa) | 0.8-1.05 | 0.8-1.05 | 0.8-1.05 |
| Rated Power(Kw / Hp) | 1.5/2.0 | 2.2/3.0 | 3.0/4.0 |
| Driving Method | Direct-coupling | ||
| Noise Level | <72±2dB(A) | ||
| AT(℃) | -40~+65℃ | ||
| Air Delivery (L/min) | 180 | 290 | 350 |
| N.W(K.g) | 32 | 48 | 48.5 |
| Dimension （MM） | 400*380*380 | 550*380*380 | 550*380*380 |
| Exhaust Port Size | M22*1.5 external thread, internal 24 degree cone seal | ||
Founded:2010 In 2010, MAXTOP AIR cooperated with Rotorcomp Technology
MAXTOP AIR is the leading manufacturer in China for compressor equipment. Our company provides solutions, services, spare parts, and materials for almost every industry. The company's partners include metallurgy, machinery manufacturing, shipbuilding, mining, glass, cement, light industry, pulp and paper, food, medical and other industries. MAXTOP AIR cooperates with China's largest bus company to provide safe and stable compressed air solutions for new energy vehicles and rail transit braking systems. Also produces the Top professional quality We offer good commercial value, superior product quality and user-friendliness for distributors and end customers.
Q: Where is your market?
A: We are exporting Maxtop compressors, related equipment & spare parts to more than 30 countries,
Q: What's your payment terms?
A: We could accept L/C sight, T/T before shipment.
Q: What's the delivery time?
A: We could deliver the goods about 15~30 days after order confirmed.
Q: What is the MOQ?
A: The MOQ of MAXTOP brand is 1 PCS, and the MOQ of OEM is 20-100 PCS.
Q: Can I place a trial order to test?
A: Yes, we could provide small quantity for your test.
Q: What is your warranty term for compressors?
A: We provide 3-years air end---Germany famous brand Rotorcomp warranty service. And supply all accessories at cost price.
