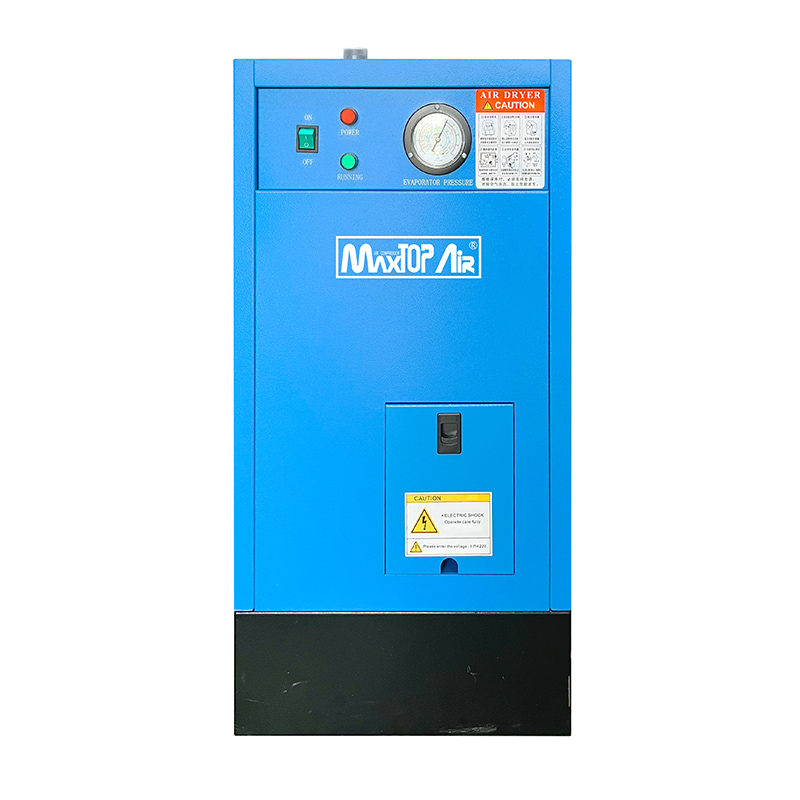

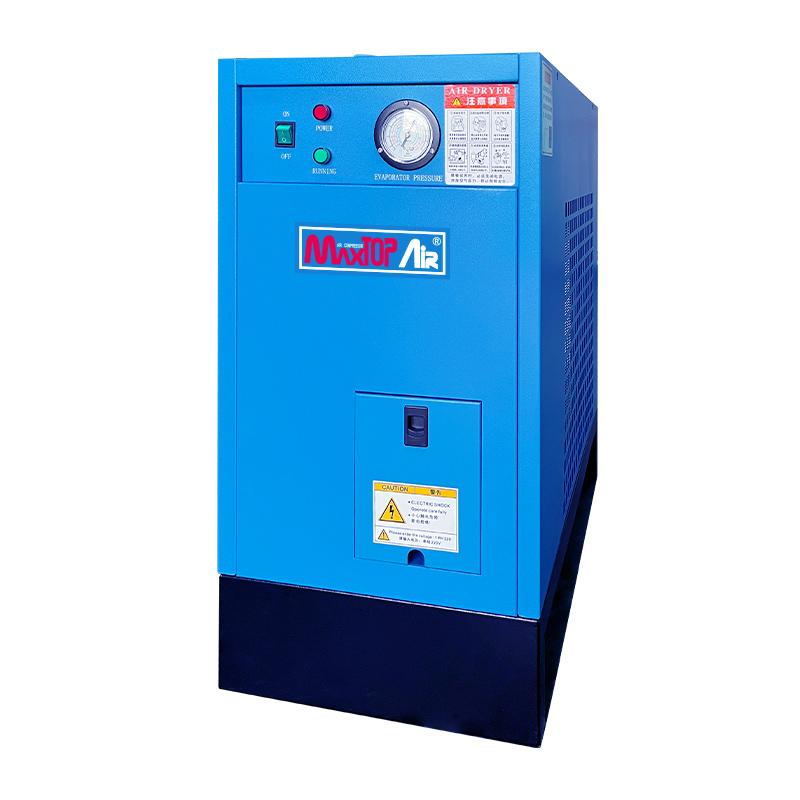

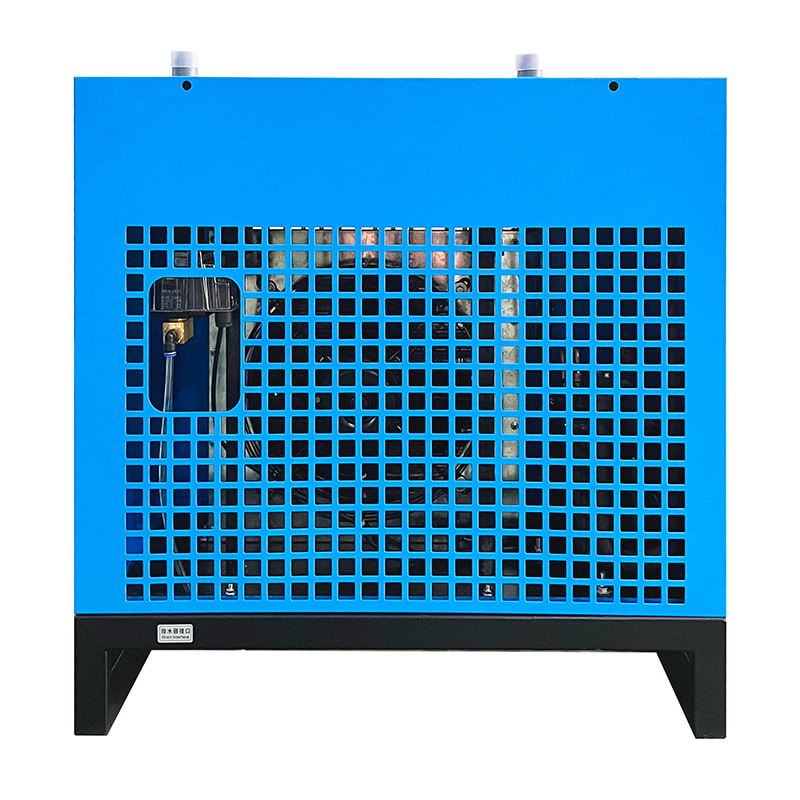

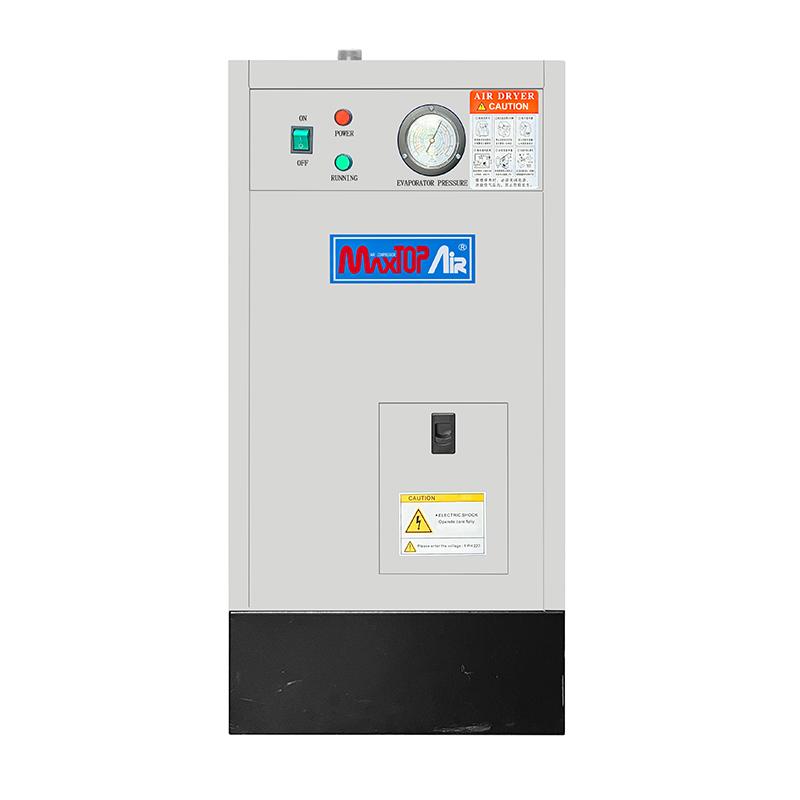

Maxtop refrigerated air dryers, designed as the best combination which connected with screw air compressor,scroll air compressors.,etc to remove moisture and humidity from the air. High quality Compressor Air Dryers ensure the perfect production and manufacturing environment.
Item No :
MT-7.5AC~ MT-600ACOrder(MOQ) :
≥1 unitPayment :
T/T, L/C at sightProduct Origin :
ChinaColor :
Blue,White, OEM custom madeRefrigerated Air Dryers For Air Compressors
The refrigerated air dryers are widely use for the industry such as heavy-duty industry, manufacturing, medical, food and beverage. Refrigerated dryers can prevent many systems and equipment from damage caused by moisture, ensure the high air quality and process higher efficiency, and extend equipment better service-life.
MAXTOP Air Dryers offer serveral advantages in compressed air treatment. These advanced dryers efficiently eliminate moisture from compressed air, ensuring a dependable and clean air supply for diverse applications.
.
The compact dryer uses advanced drying technology to quickly evaporate the moisture in the material, greatly reducing the time required for drying and improving the overall drying efficiency.
Wide Applications Refrigerated air dryers have in compressed air systems, generators, instrumentation, air tools, and spray applications.
Maxtop Air Dryers special compact design, easy to place in laboratories, universities or research and development institutions,saving space and making them easy to move and install. This makes
it easier to operate in limited experimental environments.
Designed for researchers working in scientific laboratories, these devices are usually simple and intuitive to operate, allowing researchers to easily master and perform the drying process.
The compact dryer is designed to be easy to operate in a limited experimental environment. It is also easy to move and install to adapt to different working environments and needs.
| Model | MT-7.5AC | MT-10AC | MT-15AC | MT-20AC | MT-30AC | MT-60AC | MT-75AC |
| Capacity (m³/min) | 1.2 | 1.95 | 2.2 | 2.6 | 3.8 | 6.5 | 9.5 |
| Utilization Conditions |
A. The max Temp at the inlet:80°C, B. The max ambinent Temp: 45°C, C. Working Pressure: 10 Bar (Pressure more than 10 Bar can be specialized) |
||||||
| Dew Point Temp | +2℃ ~ +10℃ | ||||||
| Refrigerant | R22/R407C/R134A | ||||||
| Compressor Power | 0.5HP | 0.5HP | 0.75HP | 0.75HP | 1HP | 1.5HP | 2HP |
| Power | AC 1 220V 50HZ | ||||||
| Dia of Air Inlet/ Outlet | 1'' | 1'' | 1'' | 1-½'' | 2-½'' | ||
| Dimension(mm) | 70*42*41 | 70*42*76 | 100*50*85 | 100*50*90 | 125*57*101 | ||
| Weight (Kg) | 40 | 45 | 50 | 60 | 100 | 120 | 180 |
| Model | MT-100AC | MT-150AC | MT-200AC | MT-300AC | MT-400AC | MT-500AC | MT-600AC |
| Capacity (m³/min) | 13 | 19.5 | 26 | 39 | 49 | 65 | 76 |
| Utilization Conditions |
A. The max Temp at the inlet:80°C, B. The max ambient Temp: 45°C, C. Working Pressure:10Bar ( Pressure more than 10 Bar can be specialized) |
||||||
| Dew Point Temp | +2℃ ~ +10℃ | ||||||
| Refrigerant | R22/R407C/R134A | ||||||
| Compressor Power | 3HP | 4HP | 5HP | 7.5HP | 8HP | 10HP | 12.5HP |
| Power | AC 3 380V 50HZ | ||||||
| Dia of Air Inlet/ Outlet | 2-½'' | 3'' | 3'' | 4'' | 4'' | 5'' | 5'' |
| Dimension(mm) | 125*57*111 | 140*63*119 | 140*63*124 | 180*70*140 | 180*70*140 | 200*70*140 | 200*80*150 |
| Weight (Kg) | 200 | 300 | 320 | 400 | 450 | 600 | 630 |
Founded:2010 In 2010, MAXTOP AIR cooperated with Rotorcomp Technology
MAXTOP AIR is the leading manufacturer in China for compressor equipment. Our company provides solutions, services, spare parts, and materials for almost every industry. The company's partners include metallurgy, machinery manufacturing, shipbuilding, mining, glass, cement, light industry, pulp and paper, food, medical and other industries. MAXTOP AIR cooperates with China's largest bus company to provide safe and stable compressed air solutions for new energy vehicles and rail transit braking systems. Also produces the Top professional quality We offer good commercial value, superior product quality and user-friendliness for distributors and end customers.
Q: Where is your market?
A: We are exporting Maxtop compressors, related equipment & spare parts to more than 30 countries,
Q: What's your payment terms?
A: We could accept L/C sight, T/T before shipment.
Q: What's the delivery time?
A: We could deliver the goods about 15~30 days after order confirmed.
Q: What is the MOQ?
A: The MOQ of MAXTOP brand is 1 PCS, and the MOQ of OEM is 20-100 PCS.
Q: Can I place a trial order to test?
A: Yes, we could provide small quantity for your test.
Q: What is your warranty term for compressors?
A: We provide 3-years air end---Germany famous brand Rotorcomp warranty service. And supply all accessories at cost price.
