Maxtop is producing a large number of silent oil-free piston air compressors with high quality, long life and simple maintenance. It supplies small oil-free air compressors with an exhaust volume of less than 1.2 m3/min. It is widely used in medical, laboratory equipment, pharmaceutical, food and beverage industries. Its pure compressed air quality is suitable for occasions with extremely high air quality requirements.
Item No :
MT-OP3 ~ MT-OP12Order(MOQ) :
≥1 unitPayment :
T/T, L/C at sightProduct Origin :
ChinaColor :
Blue,White, OEM custom madeSilent Oil-free Piston Air Compressor
1. The advantages of box-type silent oil-free piston air compressor mainly include the following aspects:
2. Oil-free energy saving: Oil-free air compressor does not need to use lubricating oil, so it will not produce oil mist during operation, which is suitable for fields that require pure oil-free compressed air, and at the same time reduces pollution to the environment.
3. Simple maintenance: The maintenance cost is low and the maintenance cycle is relatively long.
4. Low noise: The oil-free air compressor makes less noise when working and has no side effects on the working environment and personnel health. Its inlet and exhaust valve plate adopts a silencer design to further reduce noise.
5. Wide range of applications: Oil-free piston air compressor can be widely used in various fields, such as medical, laboratory equipment, pharmaceutical, food and beverage industries. Its pure compressed air quality is suitable for occasions with extremely high requirements for air quality.
Intelligent management: With the development of intelligent technology, MAXTOP oil-free air compressor has realized intelligent control. Through the intelligent control system, users can monitor the operating status of the air compressor in real time, and adjust the output pressure and flow according to actual needs to improve operating efficiency and management efficiency
Maxtop Air Compressor Benefits
If one air end fails, the other air end starts automatically by jump control. Save labor costs and no human work at night.

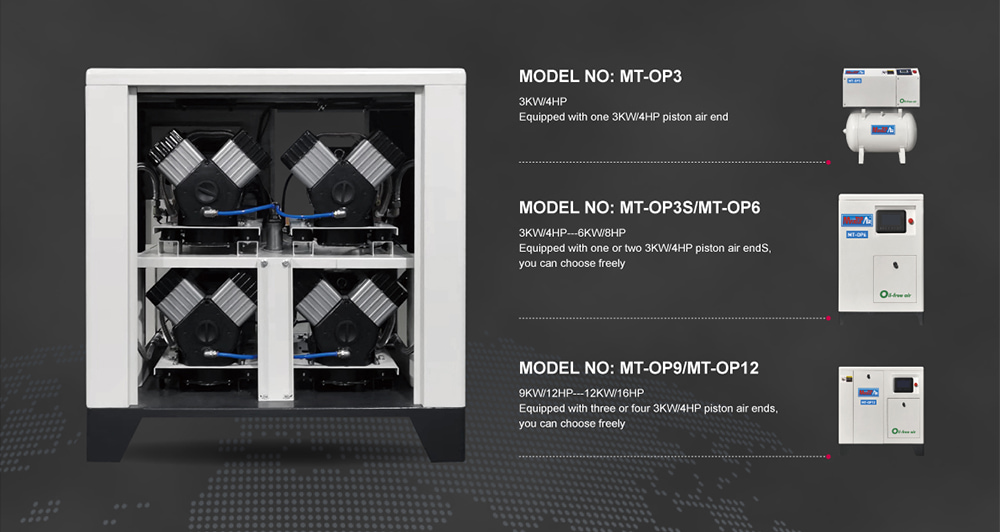

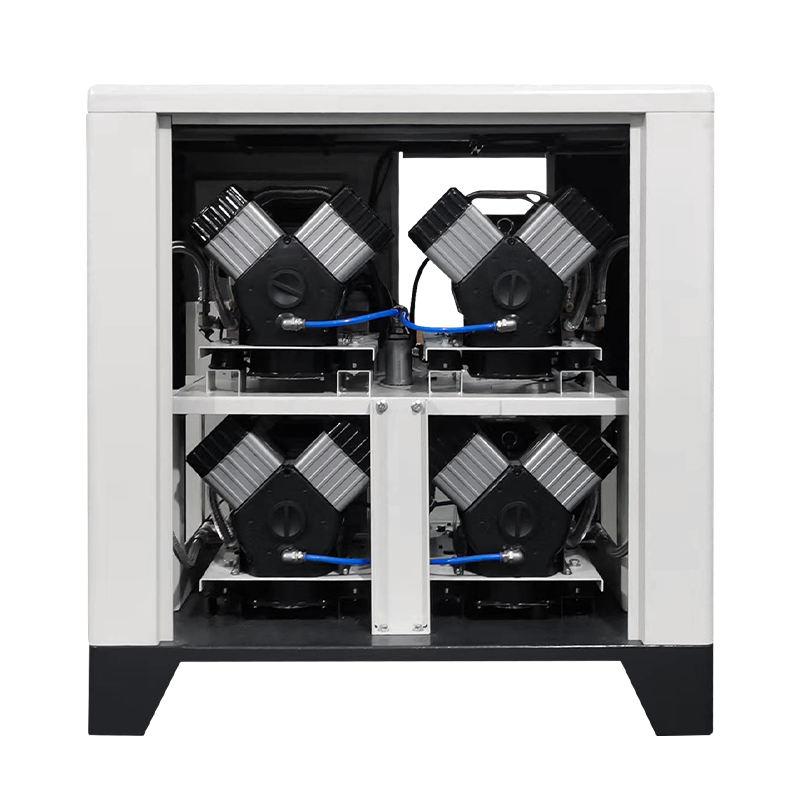

Maxtop Air Compressor Structure

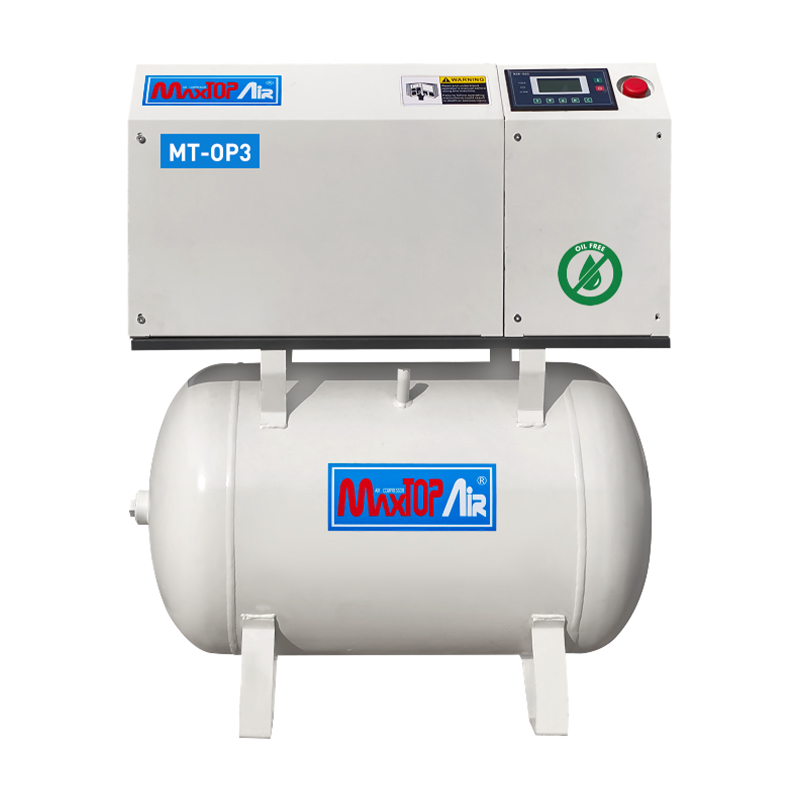

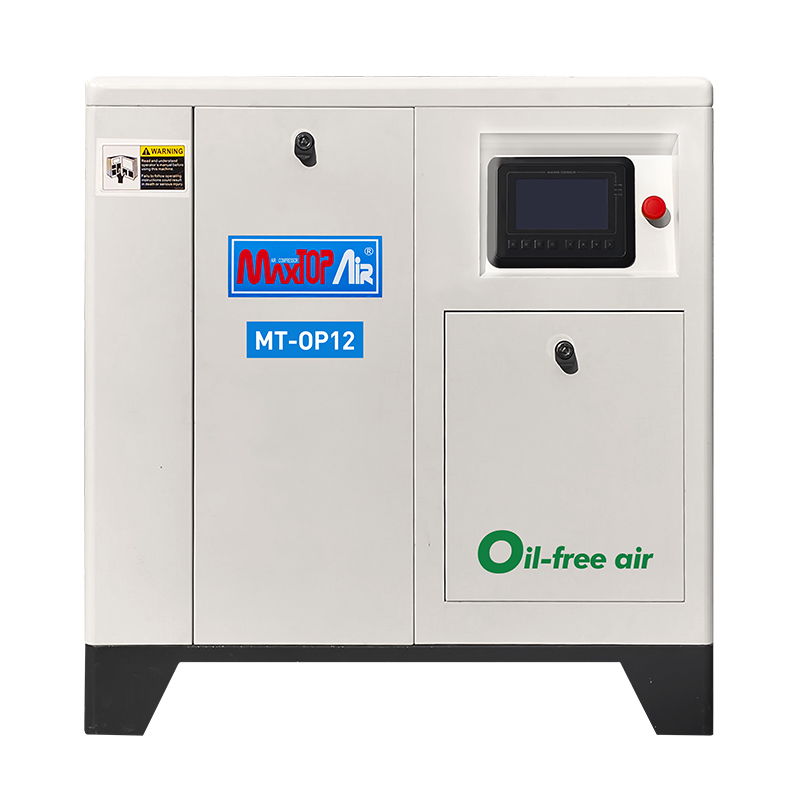

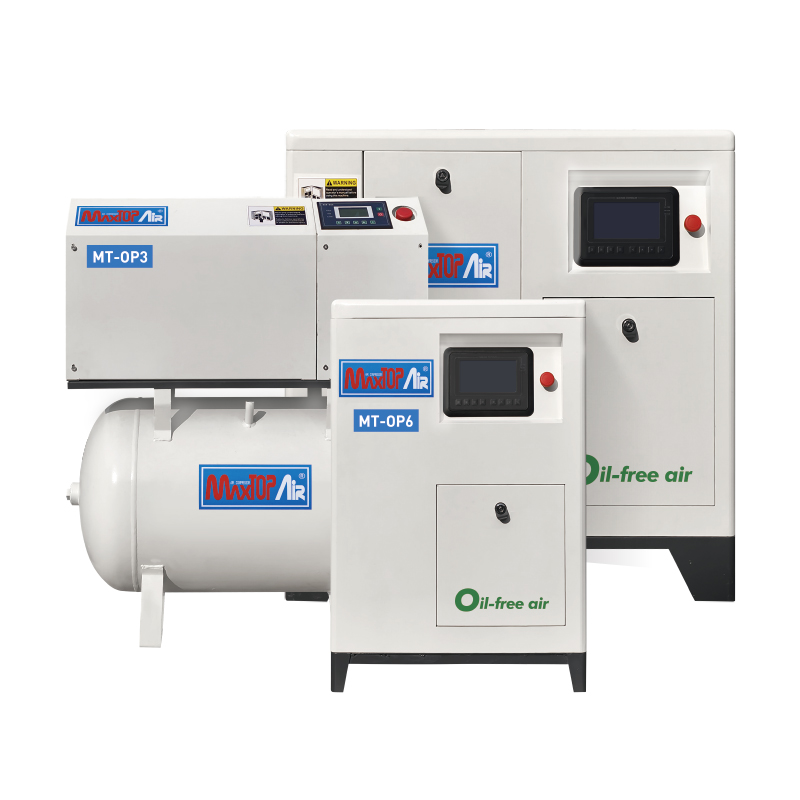

| Model Number | MT-OP3 | MT-OP3S | MT-OP6 | MT-OP9 | MT-OP12 |
| Motor Power (kw/hp) | 3.0/4.0 | 3.0/4.0 | 6.0(3.0*2)/8.0 | 9.0(3.0*3)/12.0 | 12.0(3.0*4)/16.0 |
| Power Supply/Frequency ((V/Hz) | (380V/50HZ/3P), (415V/50HZ/3P), ( 220V/60HZ/3P), (460V/60HZ/3P) | ||||
| Control Method | Automatic on / off (Pressure Sensitive) | ||||
| Working Pressure (Mpa) | 0.6-1.0Mpa | ||||
| Air Delivery (m3/min) | 0.3 | 0.3 | 0.6 | 0.9 | 1.2 |
| Driving Type | Direct-Coupling | ||||
| Noise Level | 60±2dB(A) | 60±2dB(A) | 63±2dB(A) | 63±2dB(A) | 65±2dB(A) |
| Air Outlet Pipe Diameter (mm) | 1/2" | 3/4" | 3/4" | G1 | G1 |
| Dimension (L*W*Hmm) | 900 | 700 | 700 | 1054 | 1054 |
| 625 | 700 | 700 | 800 | 800 | |
| 989 | 1038 | 1038 | 1080 | 1080 | |
| Weight (KGS) | 82 | 125 | 160 | 260 | 300 |
Founded:2010 In 2010, MAXTOP AIR cooperated with Rotorcomp Technology
MAXTOP AIR is the leading manufacturer in China for compressor equipment. Our company provides solutions, services, spare parts, and materials for almost every industry. The company's partners include metallurgy, machinery manufacturing, shipbuilding, mining, glass, cement, light industry, pulp and paper, food, medical and other industries. MAXTOP AIR cooperates with China's largest bus company to provide safe and stable compressed air solutions for new energy vehicles and rail transit braking systems. Also produces the Top professional quality We offer good commercial value, superior product quality and user-friendliness for distributors and end customers.
Q: Where is your market?
A: We are exporting Maxtop compressors, related equipment & spare parts to more than 30 countries,
Q: What's your payment terms?
A: We could accept L/C sight, T/T before shipment.
Q: What's the delivery time?
A: We could deliver the goods about 15~30 days after order confirmed.
Q: What is the MOQ?
A: The MOQ of MAXTOP brand is 1 PCS, and the MOQ of OEM is 20-100 PCS.
Q: Can I place a trial order to test?
A: Yes, we could provide small quantity for your test.
Q: What is your warranty term for compressors?
A: We provide 3-years air end---Germany famous brand Rotorcomp warranty service. And supply all accessories at cost price.
